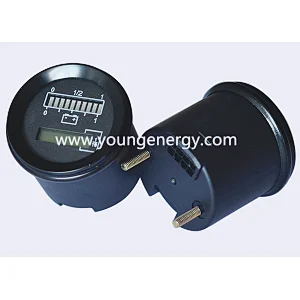

Battery Discharge Indicator

• Model Number：ESBD 803
• Brand Name：Young Energy
• Place of Origin：China

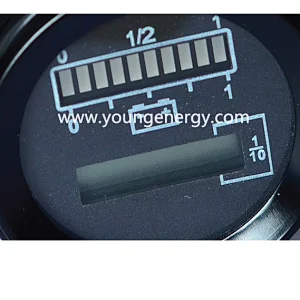

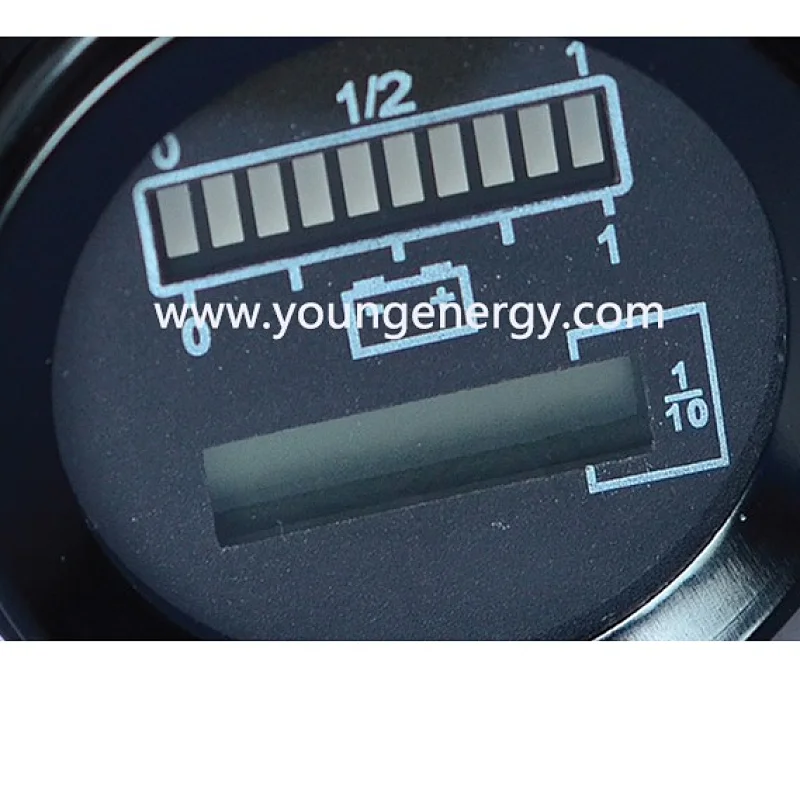

The characteristics of ten-segment LED light beam

(1) Use multi-color ten-segment LED light bar to display battery power status (sequentially 5 green, 3 yellow, 2 red LED light bars);

(2) When the battery is discharged up to 70%, the red LED light flashes, giving a warning of "battery reserve";

(3) When the battery is discharged up to 80%, the two red LEDs flash alternately, giving a warning of "depleted battery";

(4) When the battery discharge reaches 80%, the normally closed relay is disconnected to realize the lock of the controller. So as to ensure that the battery will not be over-discharged;

(5) Recognition function of false full battery;

(6) The key switch drives the LED light bar display (as long as the electricity meter is correctly connected to the battery, the LED will display correctly);

(7) Automatic reset: replace the battery to restart the reset; automatically reset after the battery is fully charged;

(8) Taking into account the battery self-discharge characteristics, when the battery does not carry a load for a long time, the module can also intelligently track the capacity reduction caused by the self-discharge of the battery.

Features of hour meter LCD

(1) The use time of the hour meter exceeds the life of the equipment;

(2) It can record and display up to 99,999.9 hours on the LCD, and can cycle and continue to calculate and display;

(3) The LCD of the electricity meter can display correctly as long as the battery is correctly connected;

It can operate and display in the range of minus 40 degrees Celsius to 65 degrees Celsius, under harsh conditions of vibration, shock, humidity, and dust.
