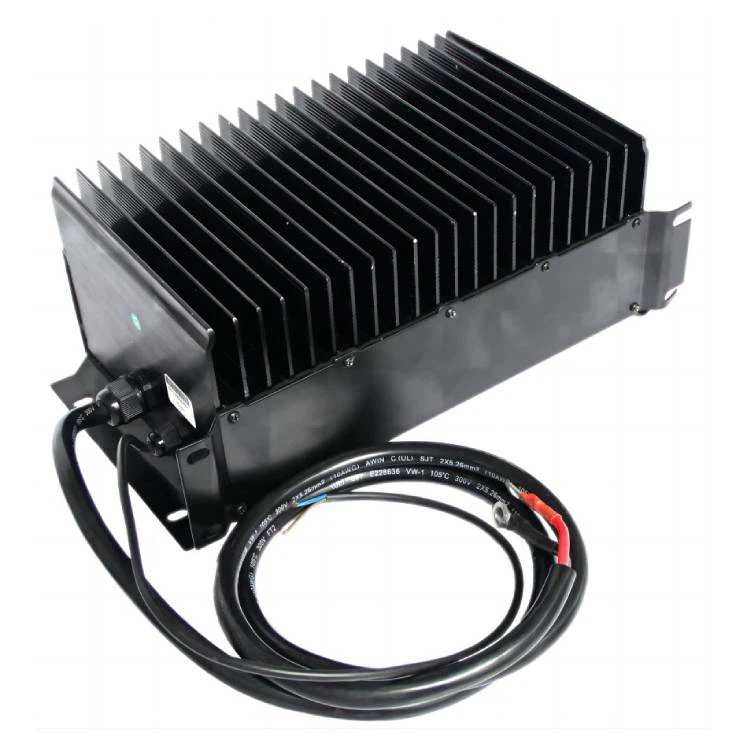

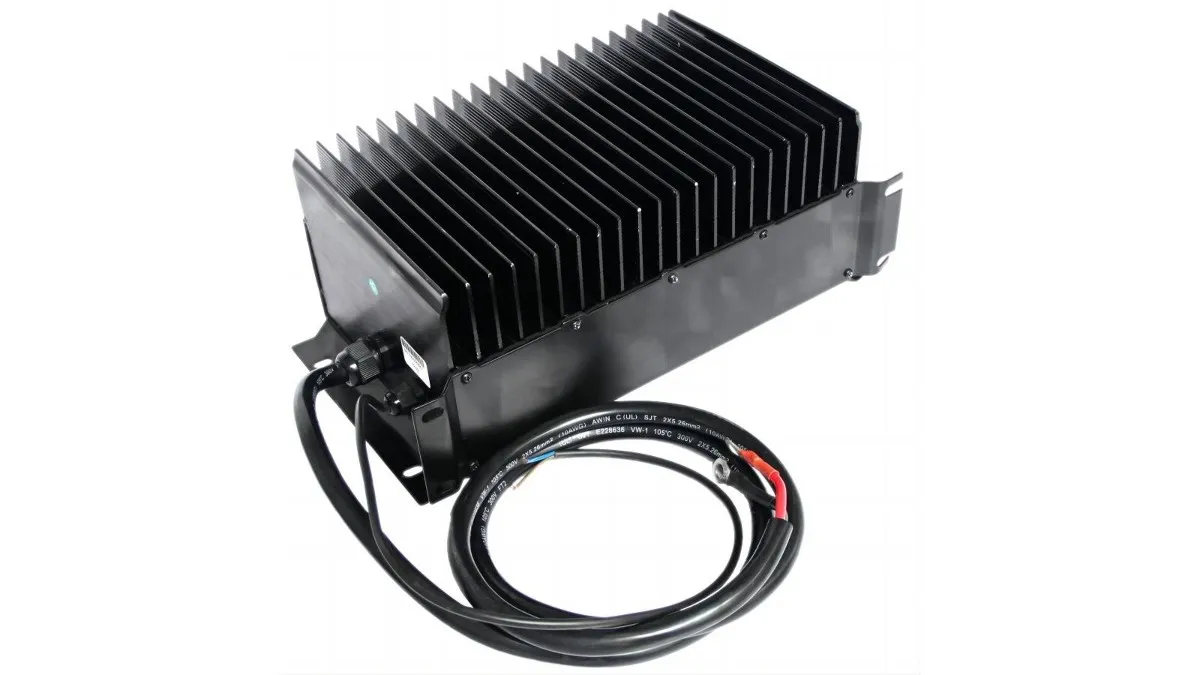

3.3KW EV Charger
The YE series 3.3KW on-board electric vehicle charger features a fully enclosed integrated aluminum die-casting structure, offering durability and reliability. Specifically designed for charging lead-acid batteries, it caters to various low-speed electric vehicles such as electric cars, electric sightseeing cars, golf carts, electric scrubbers, and electric environmental protection vehicles. This charger ensures efficient and safe charging, with advanced charging algorithms and protective features. Its compact design allows for easy installation on the vehicle, providing convenient access to charging wherever it is needed. The YE series charger is a trusted solution for keeping low-speed electric vehicles powered up and ready for use, offering reliable performance and compatibility with lead-acid batteries.
Parameters
|
Model |
YECH48V50A |
YECH60V40A |
YECH72V35A |
|
|
Dimensions (mm) |
Long * wide * high: 348*198*138 (mm) |
|||
|
Output maximum current (A) |
50 |
40 |
35 |
|
|
Maximum power point (W) |
≤3300W |
|||
|
Input voltage(VAC) |
220V±15% |
|||
|
Output voltage(VDC) |
65 |
89.8 |
103.8 |
|
|
Applicable battery voltage |
48V lead-acid battery |
60V lead-acid battery |
72V lead-acid battery |
|
|
Maximum efficiency |
95% |
|||
|
Output voltage regulation precision |
±1% |
|||
|
Output current accuracy |
±1% |
|||
|
Working temperature |
-30℃～45℃ |
|||
|
Classes of seismic measure |
SAEJ1378 |
|||
|
Cooling mode |
Air blast cooling |
|||
|
Protection grade |
IP67 |
|||
|
MTBF |
150000H |
|||
|
Noise |
<60db |
|||
|
Communication mode |
CAN2.0B |
|||
|
Over temperature protection |
75℃±5 |
|||
|
Input under-voltage protection (VAC) |
Under-voltage point 185V |
|||
|
Output over-voltage protection (VDC) |
65V±1 |
96V±1 |
105V±1 |
|
|
Output over-current protection (A) |
>110%*Maximum charge current |
|||
|
Output short circuit protection |
When the output is short-circuited, charger shutdown, and automatic recovery after short-circuit solved. |
|||
|
Battery reverses protection |
Charger shutdown and alarm when the wire is connected reversely, it will automatically resume after wiring correctly. |
|||
Features
* Adaptive Charging: Single Chip Microcomputer (SCM) according to the batteries tolerance current capacity, life curve, gas analysis point and other information to complete the full charge of the whole process.
* Charging protection: The intelligent temperature compensation function of the charging process can avoid the damage caused by the overcharge or undercharge of the battery.
* Long Lifespan: With a pulse charging function, the battery is filled with the premise of ensuring the best life of the battery.
* Digital display: can display online charging current, voltage, charging time.
