How does a solar battery charger work?

How does a solar battery charger work?

As a seasoned supplier of battery chargers, I've witnessed the growing interest in solar battery chargers in recent years. These chargers offer a sustainable and cost - effective way to keep batteries powered, especially in remote locations or for those looking to reduce their carbon footprint. In this blog, I'll delve into the inner workings of solar battery chargers, explaining the key components and the process that enables them to charge batteries efficiently.

The Basics of Solar Energy Conversion

At the heart of a solar battery charger is the solar panel. Solar panels are made up of photovoltaic (PV) cells, which are responsible for converting sunlight into electricity. These PV cells are typically made from semiconductor materials, most commonly silicon. When sunlight hits the PV cells, it excites the electrons in the semiconductor material, causing them to break free from their atoms. This creates an electric current, known as the photovoltaic effect.

The amount of electricity generated by a solar panel depends on several factors, including the intensity of the sunlight, the angle of the panel relative to the sun, and the efficiency of the PV cells. Higher - quality PV cells can convert a greater percentage of sunlight into electricity. For example, some advanced PV cells can achieve an efficiency of over 20%, meaning they can convert 20% of the sunlight they receive into usable electrical energy.

Components of a Solar Battery Charger

A typical solar battery charger consists of several key components in addition to the solar panel:

1. Charge Controller: This is a crucial component that regulates the flow of electricity from the solar panel to the battery. Without a charge controller, the battery could be overcharged, which can damage the battery and reduce its lifespan. The charge controller monitors the battery's state of charge and adjusts the charging current accordingly. There are two main types of charge controllers: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT).



   • PWM Charge Controllers: These are the more basic and affordable type of charge controllers. They work by rapidly switching the connection between the solar panel and the battery on and off to control the charging current. PWM charge controllers are suitable for small - scale solar charging systems and are relatively simple to install and operate.
   • MPPT Charge Controllers: These are more advanced and efficient charge controllers. They continuously track the maximum power point of the solar panel, ensuring that the panel operates at its highest efficiency. MPPT charge controllers can increase the charging efficiency by up to 30% compared to PWM charge controllers, especially in situations where the solar panel is not receiving optimal sunlight.

2. Battery: The battery stores the electrical energy generated by the solar panel for later use. Different types of batteries can be used with solar battery chargers, such as lead - acid batteries, lithium - ion batteries, and nickel - metal hydride batteries. Each type of battery has its own characteristics, including capacity, voltage, and lifespan.

   • Lead - Acid Batteries: These are the most common type of batteries used in solar charging systems. They are relatively inexpensive and have a long history of use. There are two main types of lead - acid batteries: flooded lead - acid batteries and sealed lead - acid batteries. Sealed Lead Battery Chargers are designed specifically for sealed lead - acid batteries, which are maintenance - free and can be used in a variety of applications.
   • Lithium - Ion Batteries: These batteries are becoming increasingly popular due to their high energy density, long lifespan, and low self - discharge rate. However, they are more expensive than lead - acid batteries. Lithium - ion batteries require a specialized charge controller to ensure safe and efficient charging.
   • Nickel - Metal Hydride Batteries: These batteries offer a good balance between cost and performance. They have a higher energy density than lead - acid batteries and are more environmentally friendly. Nickel - metal hydride batteries are commonly used in small - scale solar charging applications, such as portable chargers.

3. Wiring and Connectors: These components are used to connect the solar panel, charge controller, and battery together. It's important to use high - quality wiring and connectors to minimize power losses and ensure a reliable electrical connection. The size of the wiring depends on the amount of current that will be flowing through it. Larger currents require thicker wiring to prevent overheating.

The Charging Process

The charging process of a solar battery charger can be divided into several stages:

1. Bulk Charging: This is the initial stage of the charging process, where the charge controller allows the maximum amount of current to flow from the solar panel to the battery. During this stage, the battery's state of charge increases rapidly. The charge controller monitors the battery voltage and switches to the next stage when the battery reaches a certain voltage level.

2. Absorption Charging: In this stage, the charge controller reduces the charging current while maintaining a constant voltage. This allows the battery to fully charge without overcharging. The absorption charging stage can take several hours, depending on the battery's capacity and state of charge.

3. Float Charging: Once the battery is fully charged, the charge controller switches to the float charging stage. In this stage, the charge controller provides a small amount of current to the battery to maintain its charge and prevent self - discharge. Float charging is important for extending the battery's lifespan, especially for lead - acid batteries.

Applications of Solar Battery Chargers

Solar battery chargers have a wide range of applications, including:

1. Off - Grid Power Systems: These systems are used in remote locations where there is no access to the electrical grid. Solar battery chargers can be used to charge batteries that power lights, appliances, and other electrical devices. For example, a small off - grid cabin in the mountains can use a solar battery charger to keep its batteries charged, providing power for basic necessities.
2. Recreational Vehicles: Solar battery chargers are popular among RV owners. They can be used to charge the RV's batteries while on the road or parked at a campsite. This allows the RV to have a continuous supply of power for lights, refrigerators, and other electrical equipment without relying on a generator.
3. Marine Applications: Boats and yachts can also benefit from solar battery chargers. They can be used to charge the boat's batteries, which power navigation equipment, lights, and other electrical systems. Solar battery chargers are especially useful for long - term mooring or when sailing in areas with limited access to shore power.
4. Portable Chargers: There are many portable solar battery chargers available on the market. These chargers are small and lightweight, making them ideal for charging mobile phones, tablets, and other small electronic devices while on the go. For example, a hiker can use a portable solar battery charger to keep their phone charged during a multi - day hike.

Why Choose Our Battery Chargers?

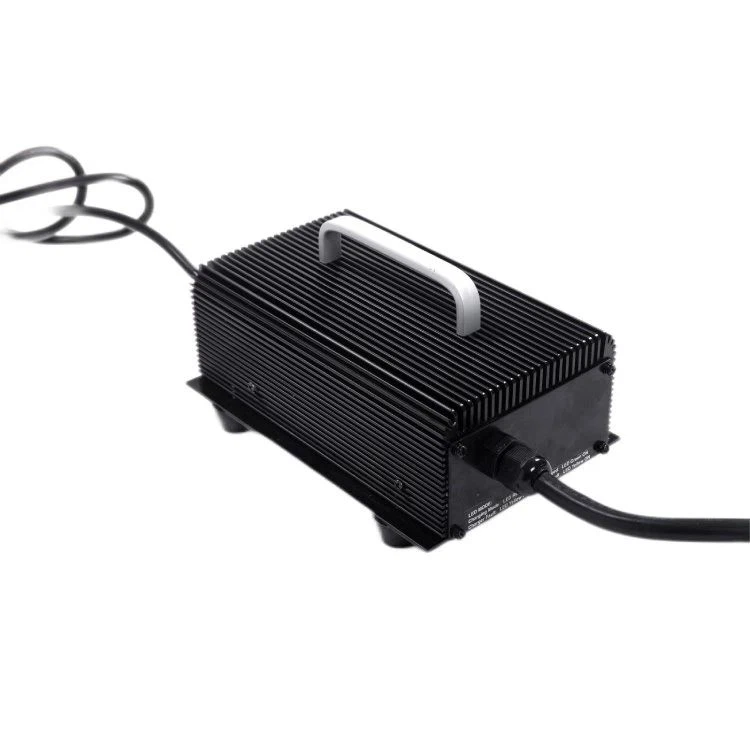

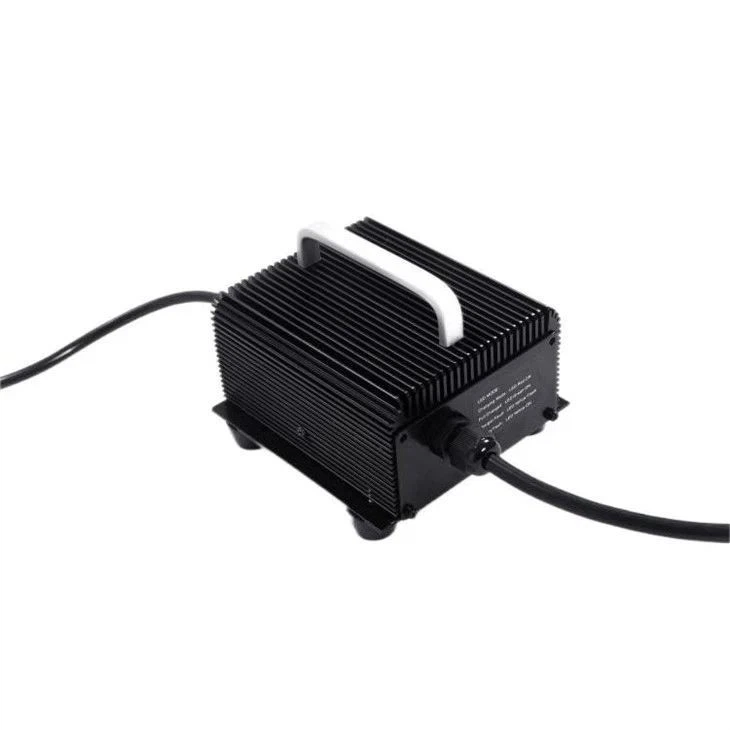

As a leading supplier of battery chargers, we offer a wide range of high - quality solar battery chargers. Our chargers are designed with the latest technology and are built to last. We have Sealed Lead Battery Chargers for those who need a reliable charger for their sealed lead - acid batteries. Our Battery Maintenance Chargers are perfect for keeping batteries in good condition over long periods of time. And if you're in the market for a charger for your trailer, our Trailer Battery Chargers are a great choice.

We understand that every customer has unique needs, and our team of experts is always ready to provide personalized advice and support. Whether you're setting up a small off - grid system or a large - scale solar charging installation, we can help you find the right charger for your requirements.

If you're interested in learning more about our battery chargers or have any questions about solar battery charging, we encourage you to get in touch with us. Our dedicated sales team is eager to discuss your needs and help you make the best choice for your application. Start your journey towards sustainable and efficient battery charging today by reaching out to us.

References

1. "Photovoltaic Systems Design and Installation Handbook" by John Wiles, et al.
2. "Battery Technology Handbook" by Thomas H. Eager.
3. Industry reports on solar energy and battery charging technology from various research institutions.
