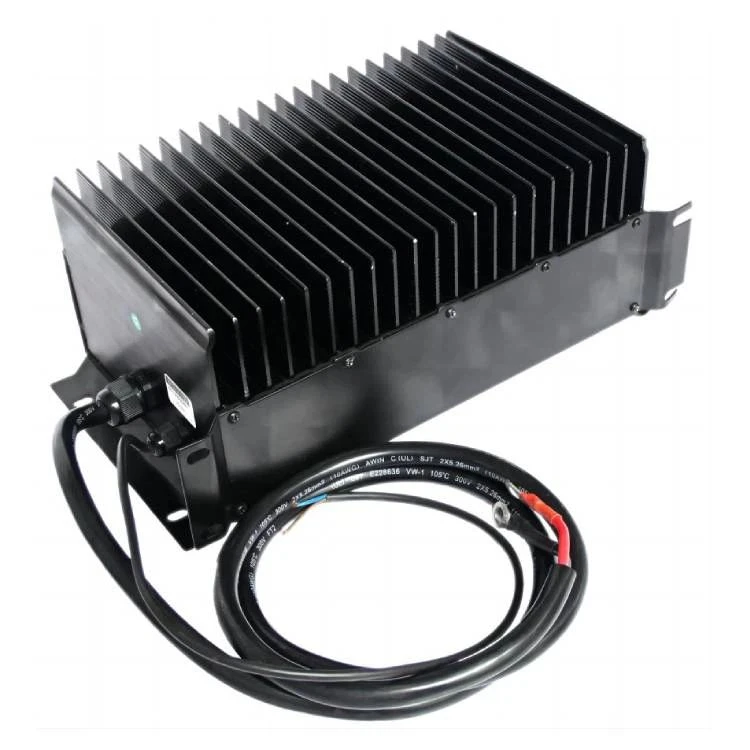

48V Industrial Battery Charger
This 48V industrial battery charger is ideal for powering electric forklifts, pallet trucks, aerial work platforms and other heavy equipment.
Parameters
|
Model |
YNCH48V5A-I |
YNCH48V10A-I |
YNCH48V15A-I |
|
Dimensions (L*W*H)mm |
210*123*65 |
||
|
Maximum output current(A) |
5 |
10 |
15 |
|
Rated output power(W) |
320 |
650 |
970 |
|
Input Voltage(VAC) |
100-264 50-60HZ |
185-264 50-60HZ |
|
|
Output Voltage (VDC) |
65 |
||
|
Applicable Battery/ Voltage |
48V10-15AH Lithium Ion Battery |
48V20-30AH Lithium Ion Battery |
48V30-45AH Lithium Ion Battery |
|
Maximum efficiency rate |
≥93% |
||
|
Output voltage stabilization accuracy |
±1% |
||
|
Output current stabilization accuracy |
±1% |
||
|
Working temperature |
–15℃-45℃ |
||
|
Seismic grade |
SAEJ1378 |
||
|
Cooling system |
Fan |
||
|
Overheating protection |
75℃±5 |
||
|
Input undervoltage protection(VAC) |
undervoltage point 100 |
undervoltage point 185 |
|
|
Output overvoltage protection(VDC) |
65±1 |
||
|
Output overcurrent protection(A) |
＞110% Maximum charging current |
||
|
Output short circuit protection |
When the output is short-circuited, the charger shuts down; after the short-circuit is lifted, it automatically recovers |
||
|
Battery reverse connection protection |
In case of reverse connection, the charger will shut down and alarm; after correct wiring, it will recover automatically |
||
Product characteristics
High efficiency: Up to 90% charging efficiency with advanced technology.
Wide input voltage range: Compatible with global AC inputs from 100VAC to 240VAC, making it suitable for a variety of locations.
Accurate charging:
Output voltage accuracy: ±1%
Output current accuracy: ±1%
Cooling system: An integrated fan ensures efficient heat dissipation and optimal performance.
Application
48V Industrial battery chargers are ideal for a variety of industrial applications, including:
Electric forklift truck
Pallet car
Aerial work platform
Floor care machine
Heavy industrial equipment
Safety and compliance
Multiple protection mechanisms: including over current, over voltage, short circuit, reverse polarity and thermal protection to ensure safe and reliable operation.
Certified safety standards: Comply with international safety certifications such as CE, TUV and UL to ensure compliance with global safety norms.
Our advantage
Advanced technology: We offer efficient, high-precision charging solutions using cutting-edge technology.
Customization options: Custom design and charging profiles and body colors can be customized in red or yellow to meet specific customer requirements.
Global logistics advantage
Strong research and development capabilities: We have 1000 square meters of research and development center, more than 20 patents and innovation results
Perfect quality management system certification: The company has passed ISO9001:2015 quality system certification and CE, TUV, UL safety certification.
FAQ
Q: What are the main features of 48V industrial battery chargers?
A: Key features include high efficiency (up to 90%), durable design, wide input voltage range, precise charging of high-precision output voltage and current, and an effective cooling system.
Q: How do these features affect charging efficiency and safety?
A: These features increase efficiency and safety by ensuring optimal charging performance, reducing the risk of overheating and providing reliable operation in a variety of industrial conditions.
Q: Can the charger be customized to meet specific needs?
A: Yes, we offer customized design options and charging profiles to meet the unique requirements of our customers.
With advanced technology, precision engineering and powerful safety features, our chargers are the best choice for efficient and safe battery charging. For more information about the product, please contact us and look forward to working with you.
